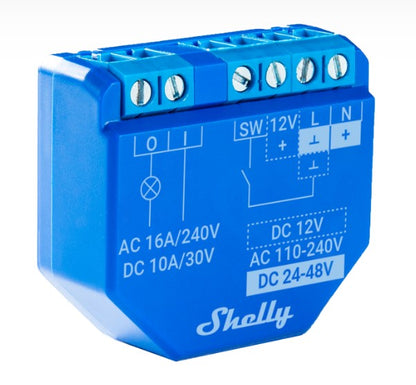

WiFi-operated relay switch, 1 channel 16A
PRE-ORDER: Shipping from the 16th of December
Control wide range of home appliances and office equipment (lights, power lines, security systems, heating radiators, air conditioners, etc.) from anywhere with the smallest WiFi-operated relay switch, with Bluetooth connection
- Wi-Fi operated - Connects to your Wi-Fi network. No HUB required!
- Bluetooth - Add devices quick and easy via Bluetooth connection, using Shelly Cloud App
- Dry contacts
- Low voltage support
- Extremely fast processor – ESP32
- Enhanced safety - Over-temperature protection
- Enhanced security - MQTT and WSS support, TLS and custom certificates support
- Improved API interface
Next Generation Shelly
Enjoy supreme home automation and control with the new generation Shelly devices - Shelly Plus!
Shelly smart relays now come with perfected electrical appliances control through an extremely fast processor, quicker connectivity, improved integration, and enhanced safety! You can now add devices easily via Bluetooth connection, using Shelly Cloud App. Shelly Plus line supports TLS encryption and has an improved shell for standardized support for external sensor plugs.
WARNING:
All electrical work must be carried out by a licensed electrician under the electrical safety act and AS/NZS300. Doing your own electrical can be dangerous.
| POWER | |
| Power supply AC | 110-230V ±10%, 50/60Hz |
| Maximum load | 16A |
| Power supply DC | 24 – 240V / 12V stabilized |
| SPECIAL FUNCTIONS | |
| Dry contacts | Yes |
| Roller shutter mode | No |
| Device temperature protection | Yes |
| Overload protection | No |
| Power measurement | No |
| Working without a neutral line | No |
| FEATURES | |
| HTTP/HTTPS webhooks | Yes |
| Custom scripts(mJs) | Yes |
| Channels | 1 Channel |
| Operational temperature | 0°C to + 40 °C |
| Device power consumption | < 1 W |
| Intelligent On/Off | Yes |
| Local and remote control | Yes |
| Sunrise/Sunset | Yes |
| Weekly Schedule | Yes |
| UL Listed option | No |
| CONNECTIVITY | |
| Wireless | Yes |
| Wi-Fi Protocol | 802.11 b/g/n |
| Wi-Fi Radio frequency | 2412 - 2484 MHz |
| Wi-Fi Radio signal power | 1mW |
| Wi-Fi Range | up to 50 m outdoors and up to 30 m indoors (depending on the building materials) |
| Bluetooth | Yes |
| DIMENSIONS | |
| Size | 41mm x 36mm x 15mm |
