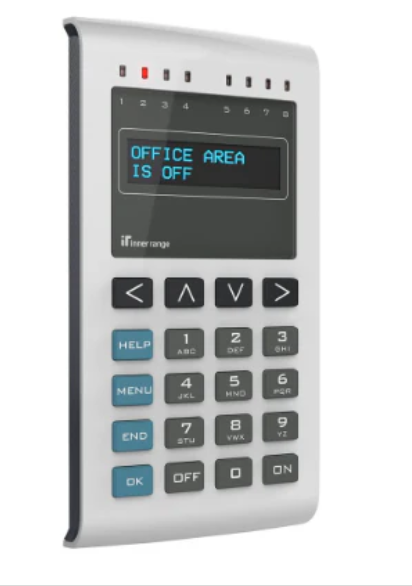

Inner Range EliteX OLED Keypad with SIFER Reader Add-on Module
The Inner Range EliteX OLED Keypad is a sleek, modern interface for controlling your Integriti system. Featuring a clear, easy-to-read OLED display, it enables users to manage security areas, control door access, review event activity, and control outputs. The 8 LED indicators display real-time system status, while the backlit rubberized keys provide a tactile, user-friendly experience.
With multi-language support and programmable features, the EliteX is versatile and installer-friendly. It can program the entire Integriti system directly from the keypad, streamlining maintenance and system adjustments.
Features:
- 2-line OLED display for clear operations
- Programmable backlight for various lighting environments
- Slimline design with a stylish neutral appearance
- Eight LEDs for real-time security system status
- Built-in panic key, duress option, and tamper monitoring
- Supports 12 languages for multi-lingual operations
- Compatible with Integriti, Inception, and Concept 4000 systems
Specifications:
- Input Voltage: 11-14V DC
- Current at 13.7V DC: 14.4mA (Backlight off), 42mA (max brightness)
- Aux Output: 18VDC, 500mA max (PTC protected)
- LED Indicators: 8
- Universal I/Os: 2
